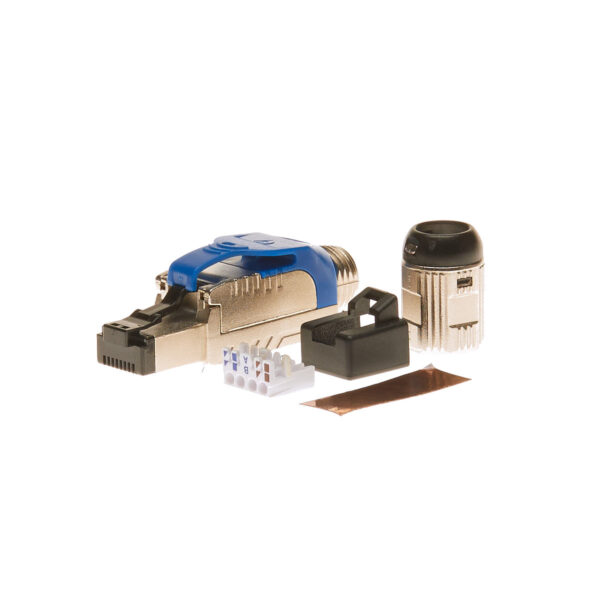

4Cabling CAT6A Shielded Field Termination Toolless Plug

Description

#html-body [data-pb-style=LLFBLJH]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}4Cabling CAT6A Shielded Field Termination Toolless Plug The 4Cabling Shielded Field Termination Plug is designed to terminate CAT6A or CAT7 with a larger diameter 23AWG – 26AWG. Perfect for quick and reliable installation.   Suitable to use with 4Cabling CAT6A Field Termination Plug Crimp Tool and Shielded Ethernet CAT6A S/FTP Cable on Reel w/ PVC Jacket | 305m Roll BlueFEATURES Fully Shielded with Zinc Alloy housing to prevent crosstalk Supports 23AWG – 26 AWG solid or stranded shielded CAT6A cable with an outside diameter between 6.0 and 7.5mm Open hinged design to simplify termination of shielded cable MATERIAL Extractor: PC, UL 94V-2 Housing: Zinc die-casting with Nickel plated  Housing: PC, UL 94V-2 Contact material: Phosphor bronze with 100 micro-inch nickel plated Contact finish: Min. 50 micro-inch gold plated on surface contact area. Cover: Zinc die-casting with Nickel plated Wire management bar: PC, UL 94-V2 Housing: PC, UL 94-V2 Terminal: Titanium copper with tin plated Grounding contact: Zinc die-casting with Nickel plated Housing: Zinc die-casting with Nickel plated SR: PC, UL 94V-2 CAP: PC, UL 94V-2 PCB: UL 94-V0 Dust cap: PE  Foil tape: Copper PERFORMANCE T568A & T568B wiring Insertion force: Max. 30N (IEC 60603-7-5) Retention strength: 7.7kg between jack and plug Operating temperature: -10°C to 60C (ISO/IEC 11801. ANSI/TIA 569 C.2) 750 cycles min. (ISO/IEC 11801, ANSI/ TIA 568 C.2) IDC: Suitable for 23-26AWG stranded and solid wire, min. 20 installation cycles Suitable for cable jacket OD: 6.0-7.5mm WARRANTY3-years limited warranty
